Page 50 - 蒙纳驱动产品册2020版

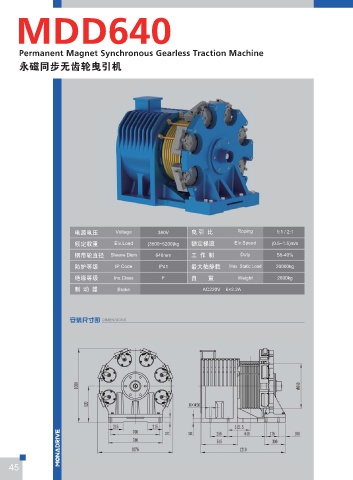

MDD640
ࡀ߭՗
NEE751 型号 规格 TQFD/TIFFU 曳引轮节径 曳引轮绳槽 额定电流 额定功率 额定转速 额定频率 额定转矩 电机极数 切口角

额定载重
额定梯速
Elv. Load
Spec.
Type
mm
m/s
r/min
kW
A
Hz
N·m
°
kg Elv. Speed Sheave Dia. Sheave Groove Current Power Speed Freq. Torque Poles β Angle
Qfsnbofou!Nbhofu!Tzodispopvt!Hfbsmftt!Usbdujpo!Nbdijof Roping 曳引比 2:1
බᇒՎ൥௃ᴐᣂజल఺ MDD640 3500-0.5 3500 0.5 640 7×Φ16×25 35 11.4 30 10.0 3640 40
MDD640 3500-0.75 3500 0.75 640 7×Φ16×25 54 17.2 45 15.0 3640 40
MDD640 3500-1.0 3500 1.0 640 7×Φ16×25 54 22.9 60 20.0 3640 40
MDD640 3500-1.5 3500 1.5 640 7×Φ16×25 87 34.3 90 30.0 3640 40
MDD640 4000-0.5 4000 0.5 640 8×Φ16×25 40 13.1 30 10.0 4160 40

MDD640 4000-0.75 4000 0.75 640 8×Φ16×25 62 19.6 45 15.0 4160 40

MDD640 4000-1.0 4000 1.0 640 8×Φ16×25 62 26.1 60 20.0 4160 40

MDD640 4000-1.5 4000 1.5 640 8×Φ16×25 99 39.2 90 30.0 4160 40 95
MDD640 4500-0.5 4500 0.5 640 8×Φ16×25 45 14.7 30 10.0 4680 40

MDD640 4500-0.75 4500 0.75 640 8×Φ16×25 70 22.1 45 15.0 4680 40

MDD640 4500-1.0 4500 1.0 640 8×Φ16×25 70 29.4 60 20.0 4680 40

MDD640 4500-1.5 4500 1.5 640 8×Φ16×25 111 44.1 90 30.0 4680 40

׈ჷ׈࿢ Voltage 380V ှ ႄ б Roping 1:1 / 2:1 MDD640 5200-0.5 5200 0.5 640 9×Φ16×25 50 17.0 30 10.0 5400 40

حקᄛᇗ Elv.Load (3500~5200)kg حקะ෎ Elv.Speed (0.5~1.5)m/s MDD640 5200-0.75 5200 0.75 640 9×Φ16×25 78 25.4 45 15.0 5400 40
ۑջ੽ᆰࣥ Sheave Diam 640mm ۽ ቔ ᇅ Duty S5-40% MDD640 5200-1.0 5200 1.0 640 9×Φ16×25 78 33.9 60 20.0 5400 40

ٝ޹֩ࠩ IP Code IP41 ቋնᇠ࣡ᄛ Max. Static Load 20000kg
MDD640 5200-1.5 5200 1.5 640 9×Φ16×25 132 50.9 90 30.0 5400 40
धჸ֩ࠩ Ins.Class F ሱ ᇗ Weight 2600kg
Roping 曳引比 1:1
ᇅ ׮ ఖ Brake AC220V 6×2.2A
MDD640 1800-1.0 1800 1.0 640 7×Φ16×25 36 11.7 30 10.0 3740 40

MDD640 1800-1.5 1800 1.5 640 7×Φ16×25 56 17.6 45 15.0 3740 40

Ҿጎ؅٫཮ DIMENSIONS MDD640 1800-1.75 1800 1.75 640 7×Φ16×25 56 20.4 52 17.3 3740 40

MDD640 1800-2.0 1800 2.0 640 7×Φ16×25 56 23.5 60 20.0 3740 40
MDD640 2000-1.0 2000 1.0 640 8×Φ16×25 40 13.1 30 10.0 4160 40

MDD640 2000.1.5 2000 1.5 640 8×Φ16×25 62 19.6 45 15.0 4160 40
95
MDD640 2000-1.75 2000 1.75 640 8×Φ16×25 62 22.7 52 17.3 4160 40

MDD640 2000-2.0 2000 2.0 640 8×Φ16×25 62 26.1 60 20.0 4160 40

MDD640 2500-1.0 2500 1.0 640 9×Φ16×25 50 16.3 30 10.0 5200 40

MDD640 2500.1.5 2500 1.5 640 9×Φ16×25 78 24.5 45 15.0 5200 40

MDD640 2500-1.75 2500 1.75 640 9×Φ16×25 78 28.3 52 17.3 5200 40
MDD640 2500-2.0 2500 2.0 640 9×Φ16×25 78 32.7 60 20.0 5200 40

注 Remark:
1、本机型切口角度γ=15°。 The undercut angle γof the machine is 15°.
45 46
